HELP
WITH INSTALLING YOUR MUTE BUTTON
Some information to help
install your mute button: |

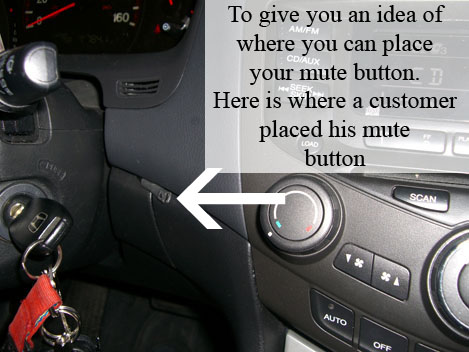

FLAT MUTE BUTTON:
-
Normally
the cord for the mute button is about 4 feet long. Figure out
where you would like to mount your mute button. The flat mute
button has strong mounting tape on the back side of it. Mounting
on a smooth surface would be ideal.
-
Clean
the surface with rubbing alcohol or some sort of cleaning agent.
Let the surface dry, peel the backing off of the mounting tap and
apply pressure for a few seconds so the mounting tape will adhere
well.

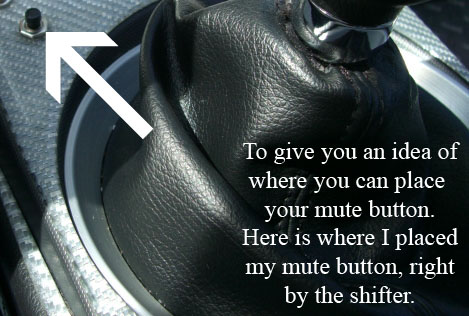

ROUND MUTE BUTTON:
-
Normally
the cord for the mute button is about 4 feet long. Figure out
where you would like to mount your mute button. The round mute
button needs a hole that is approximately 1/4" or 6.5mm to mount.
Try to test drill a hole onto an extra piece of plastic or wood that
is not needed to make sure the hole is sufficient.
-
Make
sure the chosen mounting location is either 1/8" or 2.5mm thickness or
less. Round mute button will not screw into a hole if the
mounting surface is any thicker.
-
Unscrew
the nut from the round mute button. Place the round mute button
through the hole from behind with the lock washer on it or after the
mounting hole. The lock washer is the round washer with the slit
in it, it is slightly curved up from each end. The lock washer
is needed so the nut will not loosen from vibration. Hold the
round mute button with one hand and hand tighten the nut onto the
round mute button on the front side of the mounting hole.
Finally tighten with a pair of needle nose pliers just until the lock
washer flattens.
